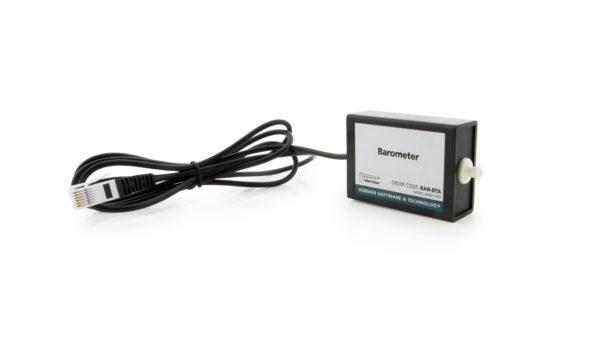

Barometer

$71.00

The Barometer can be used to measure and monitor atmospheric pressure. It works well for conducting weather studies or for experiments that involve pressures close to normal atmospheric pressure. It can also be used as an altimeter if you have a portable interface.

ORDER CODE: BAR-BTA Category

Specifications

  • Sensing Element: SenSym SDX15A4
  • Pressure Range (as shipped): 0.8 to 1.05 atm (25 to 31.5 in of Hg)
  • Maximum pressure that the sensor can tolerate without permanent damage: 2.04 atm or 61 in of Hg
  • Sensitivity: 436 mV/in of Hg to 13.06 V/atm.
  • Typical Resolution: 1.0026 X 10-4 atm (0.003 in of Hg)
  • Combined Linearity and Hysteresis: Typical ±0.1% full scale, maximum ±0.5% full scale
  • Response Time: 100 microseconds

Compatibility Requirements

LabQuest 2

Full Support

The Barometer is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.15
Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2
Go!LinkFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest MiniFull support
LabQuest 2Full support
LabQuest StreamFull support 1
Go!LinkFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportFull support
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest StreamFull supportFull supportIncompatible
LabQuest 2Full support 1Full support 1Incompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.

Experiments

Middle School (1 experiments)
High School (1 experiments)

What's Included

  • Vernier Barometer
  • User manual

Support

User Manual

View User Manual

Warranty

5-year limited warranty
