Blood Pressure Sensor

Blood Pressure Sensor

Blood Pressure Sensor

$109.00

The Blood Pressure Sensor is a non-invasive sensor designed to measure human blood pressure. It measures systolic, diastolic and mean arterial pressure utilizing the oscillometric method. Pulse rate is also reported.

ORDER CODE: BPS-BTA Categories ,

Specifications

  • Pressure range: 0 mmHg to 258 mmHg
  • Maximum pressure without permanent damage: 1550 mmHg
  • Typical accuracy: ±1 mmHg
  • Temperature compensated: -20°C to 85°C
  • Sensing element: SSCMRRN005PGAA5
  • Combined linearity and hysteresis: typical ±0.25%
  • Response time: 1 millisecond

Experiments

High School (7 experiments)
College (7 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Blood Pressure Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull supportFull supportFull support 1
EasyLinkIncompatibleFull support 2Full support 2
Go!LinkFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
  2. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1
Go!LinkFull support
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires advanced programming for data collection
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support 1
SensorDAQFull support 1
Vernier myDAQ AdapterFull support 1 2
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. Requires advanced programming for data collection
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1
Go!LinkFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull supportFull support 1
Go!LinkFull support 2Full support
TI-Nspire Lab CradleFull supportFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Requires a Go! to Easy adapter

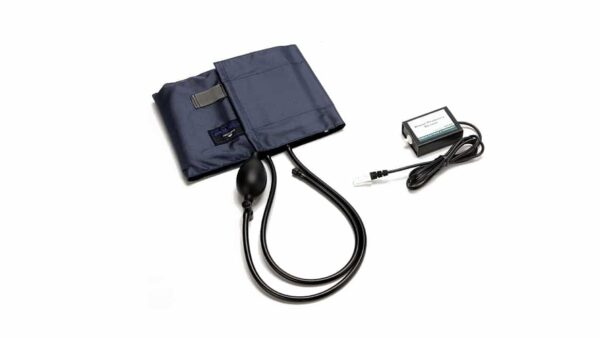

What's Included

  • Vernier Blood Pressure Sensor
  • Standard adult size adjustable cuff (27 cm to 39 cm)
  • Bulb pump (with release valve)

Accessories

AccessoryOrder CodePriceQuantity
Blood Pressure Cuff (Small)CUFF-SM$32.00
Blood Pressure Cuff (Large)CUFF-LG$35.00

Support

Warranty

5-year limited warranty
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
