EKG Sensor

EKG Sensor

EKG Sensor

$158.00

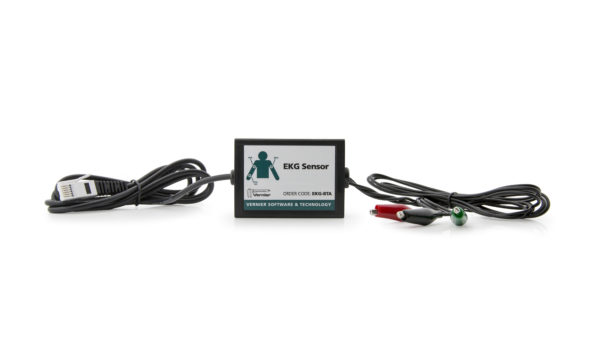

The EKG Sensor measures electrical signals produced during muscle contractions, and can be used to make standard 3-lead EKG tracings or surface EMG recordings.

ORDER CODE: EKG-BTA Categories ,

The EKG Sensor measures cardiac electrical potential waveforms (voltages produced during the contraction of the heart). It can be used to make standard 3-lead EKG tracings to record electrical activity in the heart, or to collect surface EMG recordings to study contractions in muscles in your arm, leg or jaw.

Specifications

  • Offset: ~1.00 V (±0.3 V)
  • Gain: 1 mV body potential / 1 V sensor output

Experiments

High School (8 experiments)
College (8 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The EKG Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatibleFull support 3Full support 3
Go!LinkFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1
Go!LinkFull support
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportPartial support 2

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  2. This software cannot apply digital filters to EKG data.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportPartial support 2

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  2. This software cannot apply digital filters to EKG data.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires advanced programming for data collection
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1
Go!LinkFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkPartial support 1 2IncompatiblePartial support 1 3Partial support 1Partial support 1 3
Go!LinkPartial support 1 2 4IncompatiblePartial support 1Partial support 1 4Partial support 1
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatiblePartial support 1Partial support 1
CBL 2Partial support 1 5Partial support 1 5 6IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. This software cannot apply digital filters to EKG data.
  2. Use with TI-84 Plus calculators only.
  3. Requires an Easy to Go! adapter
  4. Requires a Go! to Easy adapter
  5. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  6. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier EKG Sensor
  • A package of 100 disposable electrodes

Accessories

There are no accessories available for this product.

Support

Warranty

5-year limited warranty (consumables excluded)
