Ethanol Sensor

Ethanol Sensor

Ethanol Sensor

$119.00

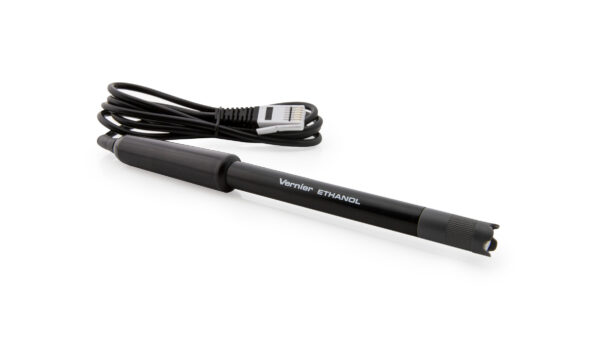

The Ethanol Sensor can be used to measure the concentration of ethanol in air above an aqueous sample.

ORDER CODE: ETH-BTA Categories ,

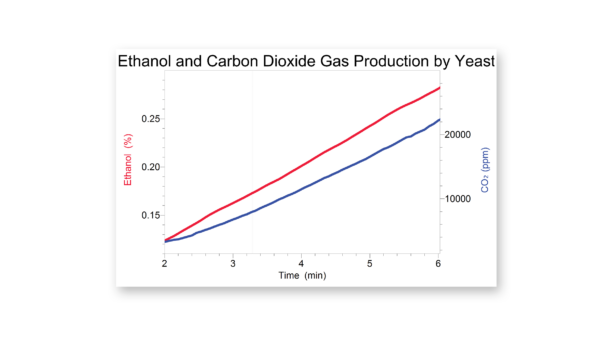

This sensor can be used in a wide range of tests and experiments. It can be used to determine the rate of ethanol production during fermentation and can also be used to measure the discrete amount of ethanol in a given sample.

Specifications

  • Range: 0% to 3%
  • Response Time: 95% of full scale in 60 seconds.

Experiments

High School (1 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Ethanol Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 1

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires advanced programming for data collection
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support 1
Vernier myDAQ AdapterFull support 1 2
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. Requires advanced programming for data collection
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataQuest
Version 4.2
TI-Nspire Software
TI-Nspire Lab CradleIncompatibleFull supportFull support
CBL 2Full support 1IncompatibleIncompatible

Compatibility Notes

  1. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.

What's Included

Accessories

AccessoryOrder CodePriceQuantity
BioChamber 2000BC-2000$22.00
250 mL Nalgene Bottle w/LidCO2-BTL$5.00

Support

Warranty

5-year limited warranty (consumables excluded)

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
