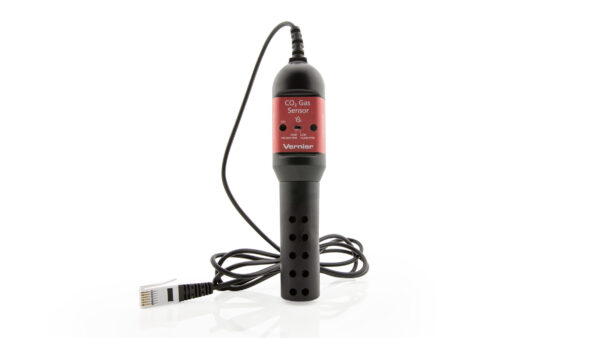

CO2 Gas Sensor

CO2 Gas Sensor

CO2 Gas Sensor

$269.00

The CO2 Gas Sensor measures gaseous carbon dioxide in two ranges–0 to 10,000 ppm and 0 to 100,000 ppm.

ORDER CODE: CO2-BTA Categories ,

Specifications

  • Response time: 95% of full-scale reading in 120 seconds
  • Warm-up time: 90 seconds
  • Pressure effect: 0.19% of reading/mm of Hg from standard pressure
  • Output signal range: 0-4.0 V
  • Gas sampling mode: diffusion
  • Normal operating temperature range: 25°C (±5°C)
  • Operating humidity range: 5–95% (non-condensing)
  • Storage temperature range: –40 to 65°C
  • Measurement Range:
    • Low range: 0 to 10,000 ppm CO2
    • High range: 0 to 100,000 ppm CO2
  • Typical Accuracy (at standard pressure, 1 atm):
    • Low range:
      • 0 to 1,000 ppm: ±100 ppm
      • 1,000 to 10,000 ppm: ±10% of reading
    • High range:
      • 0 to 1,000 ppm: ±200 ppm
      • 1,000 to 100,000 ppm: ±20% of reading
  • Resolution:
    • 0 to 10,000 ppm CO2: 3ppm
    • 0 to 100,000 ppm CO2: 30ppm

Experiments

Middle School (1 experiments)
High School (25 experiments)
ExperimentLab Book
Photosynthesis and Respiration (CO2)Agricultural Science with Vernier
Photosynthesis and Respiration (CO2 and O2)Agricultural Science with Vernier
Cell Respiration (CO2)Agricultural Science with Vernier
Cell Respiration (CO2 and O2)Agricultural Science with Vernier
Lactase ActionAgricultural Science with Vernier
Respiration of Sugars by YeastAgricultural Science with Vernier
Cell Respiration (CO2 and O2)Advanced Biology with Vernier
Cell Respiration (CO2)Advanced Biology with Vernier
Sugar Metabolism with Yeast (Carbon Dioxide Gas)Investigating Biology through Inquiry
Evolution of YeastInvestigating Biology through Inquiry
Cellular RespirationInvestigating Biology through Inquiry
Cell Respiration (CO2)Biology with Vernier
Cell Respiration (CO2 and O2)Biology with Vernier
Respiration of Sugars by YeastBiology with Vernier
Effect of Temperature on RespirationBiology with Vernier
Effect of Temperature on Cold-Blooded OrganismsBiology with Vernier
Lactase ActionBiology with Vernier
Photosynthesis and Respiration (CO2)Biology with Vernier
Photosynthesis and Respiration (CO2 and O2)Biology with Vernier
Cell Respiration (CO2)Investigating Environmental Science through Inquiry
Water Cycle Column InvestigationsInvestigating Environmental Science through Inquiry
Decomposition Column InvestigationsInvestigating Environmental Science through Inquiry
Ecocolumn InvestigationsInvestigating Environmental Science through Inquiry
Investigating Indoor Carbon Dioxide ConcentrationsInvestigating Environmental Science through Inquiry
A Pollution StudyInvestigating Environmental Science through Inquiry
College (25 experiments)
ExperimentLab Book
Photosynthesis and Respiration (CO2)Agricultural Science with Vernier
Photosynthesis and Respiration (CO2 and O2)Agricultural Science with Vernier
Cell Respiration (CO2)Agricultural Science with Vernier
Cell Respiration (CO2 and O2)Agricultural Science with Vernier
Lactase ActionAgricultural Science with Vernier
Respiration of Sugars by YeastAgricultural Science with Vernier
Cell Respiration (CO2 and O2)Advanced Biology with Vernier
Cell Respiration (CO2)Advanced Biology with Vernier
Sugar Metabolism with Yeast (Carbon Dioxide Gas)Investigating Biology through Inquiry
Evolution of YeastInvestigating Biology through Inquiry
Cellular RespirationInvestigating Biology through Inquiry
Cell Respiration (CO2)Biology with Vernier
Cell Respiration (CO2 and O2)Biology with Vernier
Respiration of Sugars by YeastBiology with Vernier
Effect of Temperature on RespirationBiology with Vernier
Effect of Temperature on Cold-Blooded OrganismsBiology with Vernier
Lactase ActionBiology with Vernier
Photosynthesis and Respiration (CO2)Biology with Vernier
Photosynthesis and Respiration (CO2 and O2)Biology with Vernier
Cell Respiration (CO2)Investigating Environmental Science through Inquiry
Water Cycle Column InvestigationsInvestigating Environmental Science through Inquiry
Decomposition Column InvestigationsInvestigating Environmental Science through Inquiry
Ecocolumn InvestigationsInvestigating Environmental Science through Inquiry
Investigating Indoor Carbon Dioxide ConcentrationsInvestigating Environmental Science through Inquiry
A Pollution StudyInvestigating Environmental Science through Inquiry

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

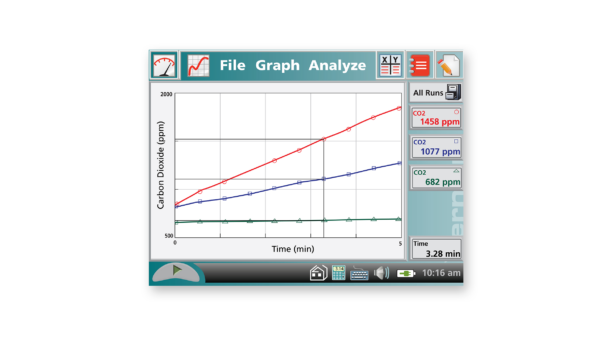

The CO2 Gas Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatibleFull support 3Full support 3
Go!LinkFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support
Original LabQuestFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1
Go!LinkFull support
LabQuest 2Full support
LabQuest MiniFull support
Original LabQuestFull support
LabQuest StreamFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest 2Full support 1Full support 1Incompatible
LabQuest StreamFull supportFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support
LabQuest StreamFull support
Original LabQuestFull support
LabQuest 2Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1
Go!LinkFull support
Original LabQuestFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
Go!LinkFull support 1 3IncompatibleFull supportFull support 3Full support
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull supportFull support
CBL 2Full support 4Full support 4 5IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. Requires a Go! to Easy adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier CO2 Gas Sensor
  • 250 mL gas sampling bottle (Nalgene bottle with lid)

Accessories

AccessoryOrder CodePriceQuantity
BioChamber 2000BC-2000$22.00
BioChamber 250BC-250$8.00
250 mL Nalgene Bottle w/LidCO2-BTL$5.00

Support

Warranty

5-year limited warranty
