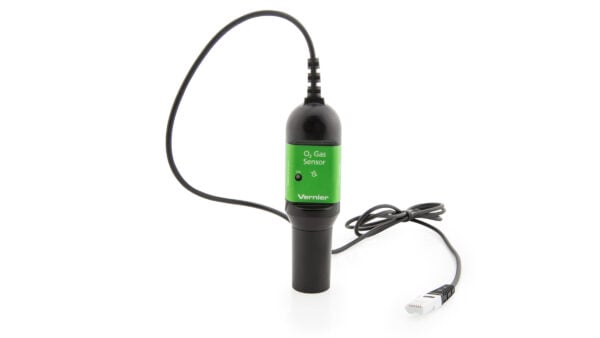

O2 Gas Sensor

O2 Gas Sensor

O2 Gas Sensor

$199.00

The O2 Gas Sensor can be used to monitor gaseous oxygen levels in a variety of biology and chemistry experiments. The sensor is intended for measuring gaseous, not aqueous, O2 concentration.

ORDER CODE: O2-BTA Categories ,

The O2 Gas Sensor measures oxygen concentration in air, and is temperature compensated for use in different environments. It has a wide measurement range, allowing it to be used to study human and cellular respiration. The O2 Gas Sensor also includes a 250 mL bottle that can be used to study the rusting of iron or as a respiration chamber for monitoring plants and insects.

Specifications

  • Measurement Range: 0–27% (0-270 ppt)
  • Accuracy (@ Standard Pressure 760 mm Hg): +/- 1% volume O2
  • Typical Resolution: 0.01%
  • Response Time: ~12 seconds to 90% of final value
  • Warm-Up Time: Less than 5 seconds to 90% of final value
  • Pressure Effect:

    • Directly proportional
    • Vout = Vout (standard) x (P/1013)
    • Pressure range: 0.5 atm to 1.5 atm
  • Output Signal Range: 0 to 4.8 VDC; 2.7 to 3.8 VDC @ 21% O2
  • Output Impedance: 1 KΩ
  • Input Voltage: 5 VDC +/–0.25 VDC
  • Gas Sampling Mode: Diffusion
  • Normal Operating Temperature Range: 25°C (±5°C)
  • Operating Temperature Range: 5 to 40°C (with calibration)
  • Operating Humidity Range: 0 to 95% RH
  • Storage Temperature Range: –20 to +60°C
  • Dimensions:

    • Sensor Tube: 45 mm length, 28 mm OD; total length: 120 mm

Experiments

High School (20 experiments)
College (20 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest® 3Full supportFull supportFull support
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2
Go!LinkFull supportFull supportFull support
LabQuest (discontinued)Full supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 4.10
LabQuest MiniFull support
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest StreamFull support 1
Go!LinkFull support
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportFull support
LabQuest® 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis App for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest StreamFull supportPartial support 1Incompatible
LabQuest® 3Full support 2Full support 2Incompatible
LabQuest 2 (discontinued)Full support 2Full support 2Incompatible

Compatibility Notes

  1. Data can be collected using the sensor’s default calibration only.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® EV3
Version 1.1
LEGO® MINDSTORMS® NXT
Version 2.0
NXT Sensor AdapterFull supportFull support
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
Go!LinkFull support
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
CBL 2Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  4. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier O2 Gas Sensor
  • 250 mL gas sampling bottle

Accessories

AccessoryOrder CodePriceQuantity
BioChamber 2000BC-2000$22.00
BioChamber 250BC-250$8.00
250 mL Nalgene Bottle w/LidCO2-BTL$5.00
O2 Gas Sensor to Spirometer AdapterO2-SPR$8.00

Support

Warranty

5-year limited warranty
