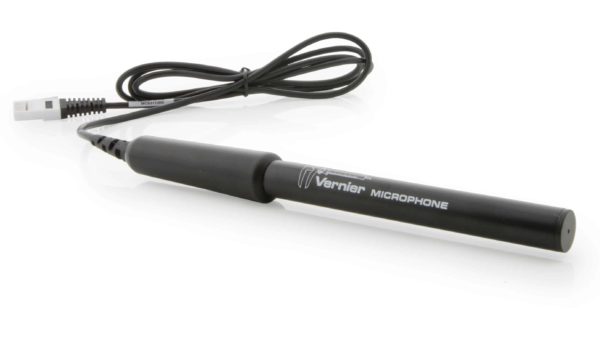

Microphone

Microphone

Microphone

$44.00

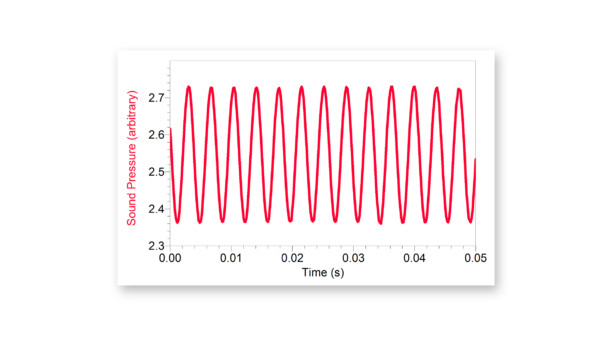

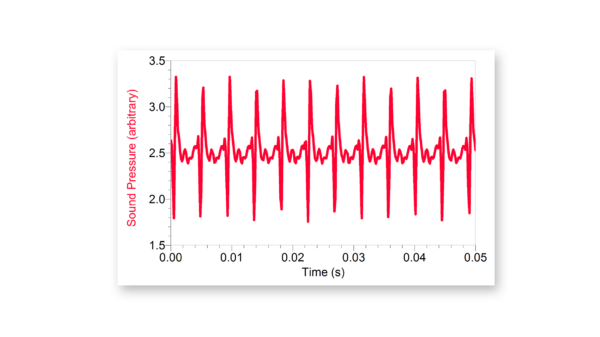

Use the Microphone to display and study the waveforms of sounds from voices and musical instruments. It also works well for speed of sound experiments.

ORDER CODE: MCA-BTA Categories ,

Specifications

  • Frequency Range: approximately 100 Hz to 15 kHz
  • Power: 1.45 mA @ 5 VDC

Experiments

Middle School (1 experiments)
High School (14 experiments)
College (12 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Microphone is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 1

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
DataQuest
Version 4.2
TI-Nspire Software
TI-Nspire Lab CradleIncompatibleIncompatibleFull supportFull support
CBL 2Full support 1Full support 1 2IncompatibleIncompatible

Compatibility Notes

  1. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  2. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Vernier Microphone

Accessories

There are no accessories available for this product.

Support

Warranty

5-year limited warranty

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
