Sound Level Sensor

Sound Level Sensor

Sound Level Sensor

$69.00

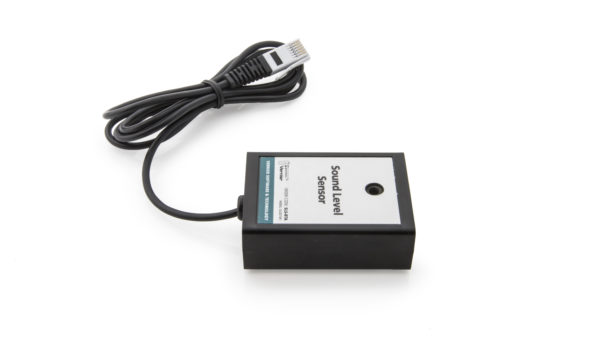

The Sound Level Sensor is a simple, easily-operated sensor to measure and investigate sound levels in classroom environments.

ORDER CODE: SLS-BTA Categories ,

The Sound Level Sensor allows you to easily measure sound level in decibels (dB) in a variety of school settings. Simply connect and collect— no background knowledge of sound-level weighting, response times, or the decibel scale is needed to use this sensor.

The Sound Level Sensor is A-weighted, meaning it responds to sound loudness the same way the human ear does. It measures sound level to within 3 dB along a single range from 55 to 110 dB, with no need to switch between ranges during an experiment. You can monitor classroom sound levels, measure reverberation time, and investigate sound insulation.

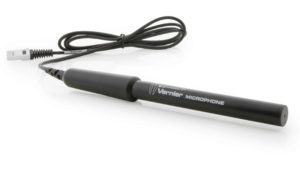

For in-depth sound studies, the Sound Level Meter is a better tool for high school or college physics. If you are interested in collecting sound waves data, use the Vernier Microphone.

Specifications

  • Response: A-weighted
  • Range: 55–110 dB
  • Accuracy: ±3 dB
  • Resolution: 0.1 dB
  • Frequency Range: 30–10,000 Hz

Experiments

High School (1 experiments)
College (1 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Sound Level Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatibleFull support 3Full support 3
Go!LinkFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1
Go!LinkFull support
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® EV3
Version 1.1
NXT Sensor AdapterPartial support 1

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1
Go!LinkFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1Full support 2Full supportFull support 2
Go!LinkFull support 1 3Full supportFull support 3Full support
TI-Nspire Lab CradleIncompatibleIncompatibleFull supportFull support
CBL 2Full support 4IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. Requires a Go! to Easy adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.

What's Included

  • Sound Level Sensor

Accessories

There are no accessories available for this product.

Support

Warranty

5-year limited warranty

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
