The Salinity Sensor easily and precisely measures the total dissolved salt content in an aqueous solution. Measure water with a wide variety of salinities, from brackish water to ocean water, and even hyper-saline environments. You can also study how salinity affects buoyancy or monitor salinity values in estuaries where fresh water mixes with ocean water.

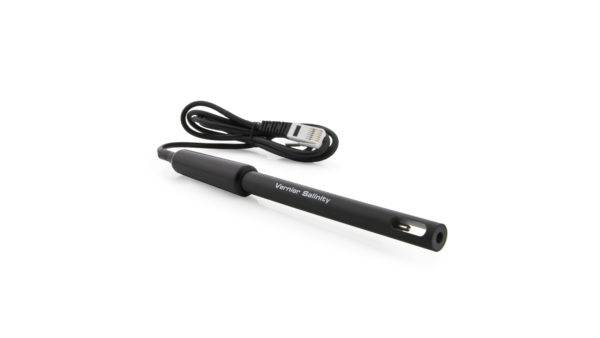

Salinity Sensor

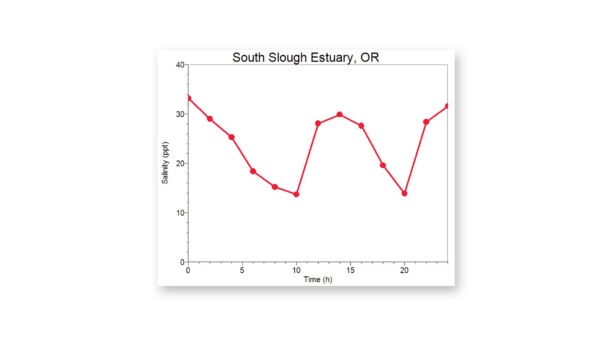

Measuring salinity in an estuary
Salinity Sensor
$149.00
The Salinity Sensor precisely measures the total dissolved salt content of ocean or brackish water.
Specifications
- Range of Salinity Sensor: 0 to 50 ppt (0 to 50,000 ppm)
- Accuracy using factory calibration: ±3% of full-scale reading
- Accuracy using custom calibration: ±1% of full-scale reading
- Response time: 90% of full-scale reading in 10 s.
- Temperature compensation: automatic from 5 to 35°C
- Temperature range (can be placed in): 0 to 80°C
- Cell constant: 10 cm-1
- Description: dip type, epoxy body, parallel platinum electrodes
- Dimensions: 12 mm OD and 150 mm length
Experiments
Middle School (1 experiments)
| Experiment | Lab Book |
|---|---|
| Chloride and Salinity | Water Quality with Vernier |
High School (1 experiments)
| Experiment | Lab Book |
|---|---|
| Chloride and Salinity | Water Quality with Vernier |
College (1 experiments)
| Experiment | Lab Book |
|---|---|
| Chloride and Salinity | Water Quality with Vernier |
Requirements
Choose a platform below to see its compatibility requirements.
LabQuest
| Interface | LabQuest App |
|---|---|
| LabQuest 3 | Full support |
| LabQuest 2 | Full support |
| LabQuest | Full support |
Computers
| Software | |||
|---|---|---|---|
| Interface | Graphical Analysis | Logger Pro (discontinued) | Logger Lite (discontinued) |
| LabQuest Mini | Full support | Full support | Full support |
| LabQuest 3 | Full support | Full support | Incompatible |
| LabQuest 2 | Full support | Full support | Full support |
| LabQuest Stream | Full support 1 | Full support | Full support 1 |
| Go!Link | Full support | Full support | Full support |
| LabQuest | Full support | Full support | Full support |
| LabPro | Incompatible | Full support | Full support |
Compatibility Notes
- Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
| Software | |
|---|---|
| Interface | Graphical Analysis |
| LabQuest Mini | Full support |
| LabQuest 3 | Full support |
| LabQuest 2 | Full support |
| LabQuest Stream | Full support 1 |
| Go!Link | Full support |
| LabQuest | Full support |
Compatibility Notes
- Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
| Software | ||
|---|---|---|
| Interface | Graphical Analysis | Graphical Analysis GW |
| LabQuest Stream | Full support | Full support |
| LabQuest 3 | Full support 1 | Full support 1 |
| LabQuest 2 | Full support 1 | Full support 1 |
Compatibility Notes
- iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
| Software | ||
|---|---|---|
| Interface | Graphical Analysis | Graphical Analysis GW |
| LabQuest Stream | Full support | Partial support 1 |
| LabQuest 3 | Full support 2 | Full support 2 |
| LabQuest 2 | Full support 2 | Full support 2 |
Compatibility Notes
- Data can be collected using the sensor’s default calibration only.
- iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
| Software | |
|---|---|
| Interface | Arduino |
| Vernier Arduino® Interface Shield | Full support |
LabVIEW
| Software | |
|---|---|
| Interface | NI LabVIEW |
| SensorDAQ | Full support |
| Vernier myDAQ Adapter | Full support 1 |
| Go!Link | Full support |
| LabQuest Mini | Full support |
| LabQuest Stream | Full support |
| LabQuest 3 | Full support |
| LabQuest 2 | Full support |
| LabQuest | Full support |
Compatibility Notes
- You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Texas Instruments
| Software | |||||
|---|---|---|---|---|---|
| Interface | EasyData | DataMate | TI-84 SmartView | DataQuest | TI-Nspire Software |
| EasyLink | Full support 1 | Incompatible | Full support 2 | Full support | Full support 2 |
| CBL 2 | Full support 3 | Full support 3 4 | Incompatible | Incompatible | Incompatible |
| LabPro | Full support 3 | Full support 3 4 | Incompatible | Incompatible | Incompatible |
| TI-Nspire Lab Cradle | Incompatible | Incompatible | Incompatible | Full support | Full support |
Compatibility Notes
- Use with TI-84 Plus calculators only.
- Requires an Easy to Go! adapter
- CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
- DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.
What's Included
- Vernier Salinity Sensor
Accessories
Support
Warranty
5-year limited warranty
