Specifications
- Power: 30 mA @ 5 VDC
- Range: ±245 m/s² (±25g)
- Accuracy: ±2.45 m/s² (±0.25g)
- Frequency Response: 0–100 Hz
- Typical Resolution: 0.16 m/s²

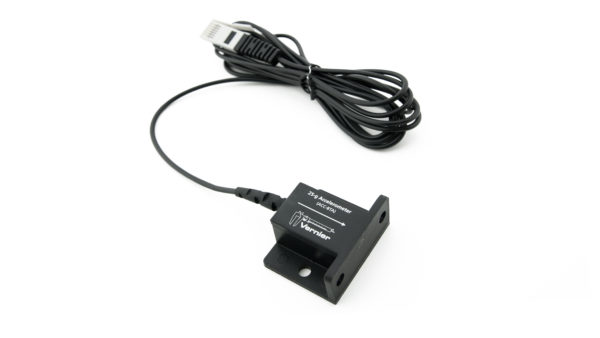

25-g Accelerometer

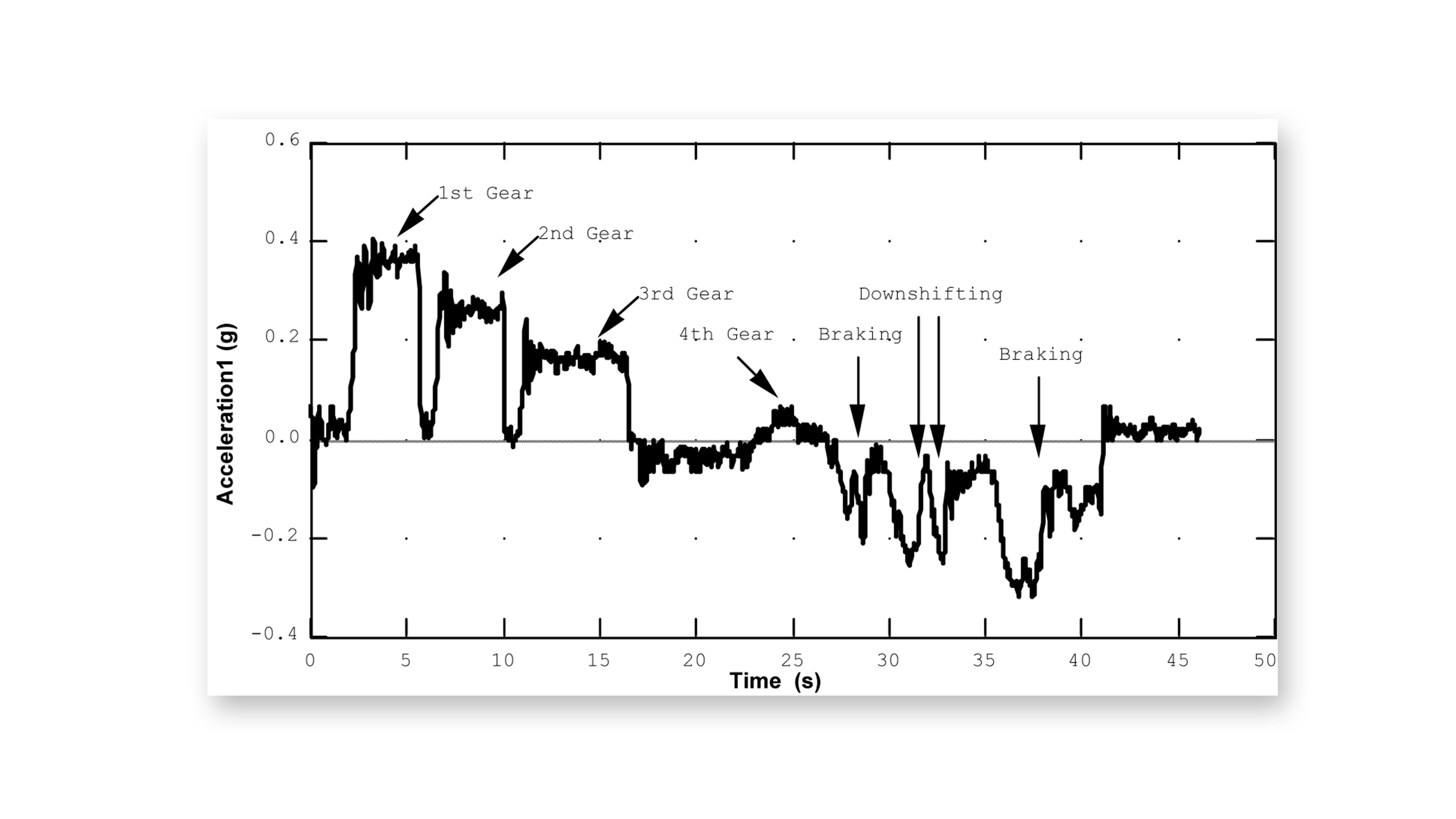

Using the Accelerometer in a manual-shift car
25-g Accelerometer
$110.00
The 25-g Accelerometer is great for studying large, one-dimensional accelerations such as collisions, rocket launches, or experiments with crash test dummies.
Experiments
High School (1 experiments)
| Experiment | Lab Book |
|---|---|
| Neuromuscular Reflexes (with Accelerometer) | Human Physiology with Vernier |
College (1 experiments)
| Experiment | Lab Book |
|---|---|
| Neuromuscular Reflexes (with Accelerometer) | Human Physiology with Vernier |
Requirements
Choose a platform below to see its compatibility requirements.
LabQuest
| Interface | LabQuest App |
|---|---|
| LabQuest 3 | Full support |
| LabQuest 2 | Full support |
| LabQuest | Full support |
Computers
| Software | |||
|---|---|---|---|
| Interface | Graphical Analysis | Logger Pro (discontinued) | Logger Lite (discontinued) |
| LabQuest Mini | Full support | Full support | Full support |
| LabQuest 3 | Full support | Full support | Incompatible |
| LabQuest 2 | Full support | Full support | Full support |
| LabQuest Stream | Full support 1 | Full support | Full support 1 |
| Go!Link | Full support | Full support | Full support |
| LabQuest | Full support | Full support | Full support |
| LabPro | Incompatible | Full support | Full support |
Compatibility Notes
- Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
| Software | |
|---|---|
| Interface | Graphical Analysis |
| LabQuest Mini | Full support |
| LabQuest 3 | Full support |
| LabQuest 2 | Full support |
| LabQuest Stream | Full support 1 |
| Go!Link | Full support |
| LabQuest | Full support |
Compatibility Notes
- Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
| Software | ||
|---|---|---|
| Interface | Graphical Analysis | Graphical Analysis GW |
| LabQuest Stream | Full support | Full support |
| LabQuest 3 | Full support 1 | Full support 1 |
| LabQuest 2 | Full support 1 | Full support 1 |
Compatibility Notes
- iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
| Software | ||
|---|---|---|
| Interface | Graphical Analysis | Graphical Analysis GW |
| LabQuest Stream | Full support | Full support |
| LabQuest 3 | Full support 1 | Full support 1 |
| LabQuest 2 | Full support 1 | Full support 1 |
Compatibility Notes
- iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
| Software | |
|---|---|
| Interface | Arduino |
| Vernier Arduino® Interface Shield | Full support |
LabVIEW
| Software | |
|---|---|
| Interface | NI LabVIEW |
| SensorDAQ | Full support |
| Vernier myDAQ Adapter | Full support 1 |
| Go!Link | Full support |
| LabQuest Mini | Full support |
| LabQuest Stream | Full support |
| LabQuest 3 | Full support |
| LabQuest 2 | Full support |
| LabQuest | Full support |
Compatibility Notes
- You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Texas Instruments
| Software | |||||
|---|---|---|---|---|---|
| Interface | EasyData | DataMate | TI-84 SmartView | DataQuest | TI-Nspire Software |
| EasyLink | Full support 1 | Incompatible | Full support 2 | Full support | Full support 2 |
| CBL 2 | Full support 3 | Full support 3 4 | Incompatible | Incompatible | Incompatible |
| LabPro | Full support 3 | Full support 3 4 | Incompatible | Incompatible | Incompatible |
| TI-Nspire Lab Cradle | Incompatible | Incompatible | Incompatible | Full support | Full support |
Compatibility Notes
- Use with TI-84 Plus calculators only.
- Requires an Easy to Go! adapter
- CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
- DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.
What's Included
- Vernier 25-g Accelerometer
Accessories
Support
Warranty
5-year limited warranty
See our warranty policy
Contact Us
- Recommended: Online Support
- Email: support@vernier.com
- Toll-free: 1-888-837-6437
