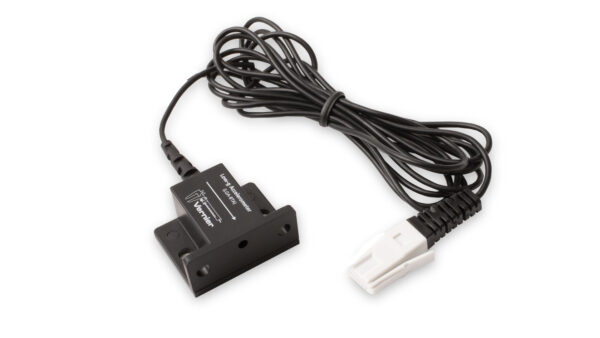

Low-g Accelerometer

$89.00

Use the Low-g Accelerometer to study one-dimensional acceleration in a wide variety of acceleration experiments and demonstrations.

ORDER CODE: LGA-BTA Categories ,

The Low-g Accelerometer is the best choice for most acceleration experiments, including Newton’s second law, simple harmonic motion, and the relationship between acceleration and force. It can also be used to study one-dimensional motion of a car (real and toy), an elevator, a pendulum bob, or an amusement park ride.

Using Multiple Accelerometers

You can simultaneously measure the signals from two or three accelerometers mounted at right angles to measure acceleration in more than one dimension.

  • To study acceleration in a plane, mount two accelerometers at a right angle. This is a great way to study accelerations in an automobile.

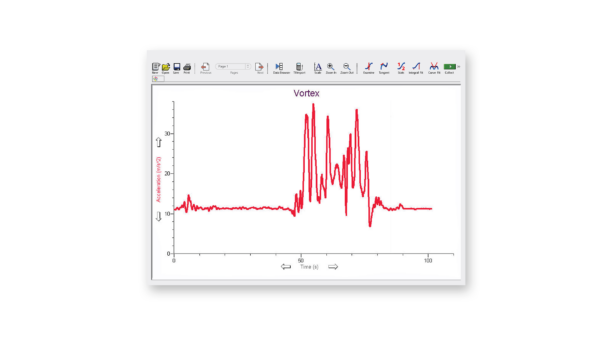

  • Mount three accelerometers at right angles, or better yet use our 3-Axis Accelerometer, to study acceleration in every direction. This is useful for studying the complex motion of an amusement park ride or while bungee jumping.

Specifications

  • Power: 30 mA @ 5 VDC
  • Range: ±50 m/s² (±5 g)
  • Accuracy: ±0.5 m/s² (±0.05 g)
  • Frequency Response: 0–100 Hz
  • Typical Resolution: 0.037 m/s²

Download the user manual for full specifications

Compatibility Requirements

LabQuest 2

Full Support

The Low-g Accelerometer is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.15
Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2
Go!LinkFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest MiniFull support
LabQuest 2Full support
LabQuest StreamFull support 1
Go!LinkFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportFull support
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest StreamFull supportFull supportIncompatible
LabQuest 2Full support 1Full support 1Incompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.

Experiments

High School (4 experiments)
College (4 experiments)

What's Included

  • Vernier Low-g Accelerometer
  • User manual

Support

User Manual

View User Manual

Warranty

5-year limited warranty

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
