3-Axis Accelerometer

3-Axis Accelerometer

Education Level:

Subjects:

Categories:

3-Axis Accelerometer

$99.00

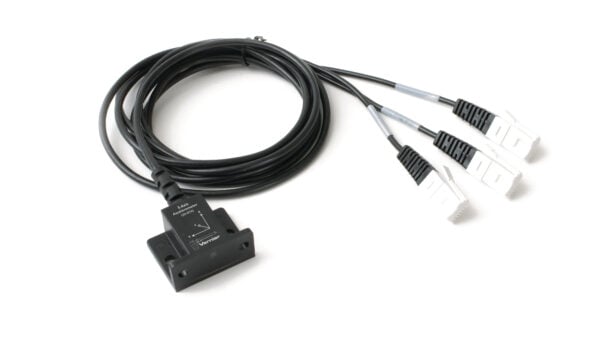

The 3-Axis Accelerometer has three separate internal accelerometers mounted orthogonally, allowing you to analyze separate components of complex accelerations.

ORDER CODE: 3D-BTA Categories ,

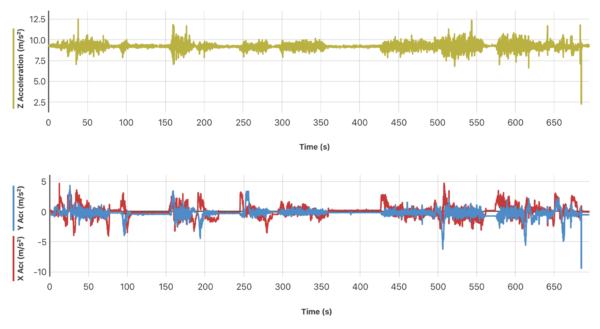

The 3-Axis Accelerometer consists of three –5 to +5 g accelerometers mounted in one small block. Using the appropriate data collection hardware and software, you can graph any of these components, or calculate the magnitude of the net acceleration. The 3-Axis Accelerometer can be used for a wide variety of experiments and demonstrations, both inside the lab and outside.

Specifications

  • Power: 30 mA @ 5 VDC
  • Range: ±49 m/s2 (±5 g)
  • Accuracy: ±0.5 m/s2 (±0.05 g)
  • Frequency Response: 0–100 Hz
  • Typical Resolution: 0.037 m/s2

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The 3-Axis Accelerometer is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10		Logger Pro
Version 3.16		Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatiblePartial support 3 4Partial support 3 4
Go!LinkPartial support 4Partial support 4Partial support 4
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
  4. This interface can only collect acceleration data from one axis.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkPartial support 1 2
Go!LinkPartial support 2
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 3

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. This interface can only collect acceleration data from one axis.
  3. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10		Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10		Graphical Analysis GW for Android
Version 3.2		Google Science Journal
Version 1.2.259
LabQuest 2Full support 1Full support 1Incompatible
LabQuest StreamFull supportFull supportIncompatible

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldPartial support 1

Compatibility Notes

  1. This interface can only collect acceleration data from two axes.
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkPartial support 1
SensorDAQFull support
Vernier myDAQ AdapterPartial support 2 3
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This interface can only collect acceleration data from two axes.
  3. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkPartial support 1 2
Go!LinkPartial support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. This interface can only collect acceleration data from one axis.
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2		DataMate
Version 1.15		TI-84 SmartViewDataQuest
Version 4.2		TI-Nspire Software
EasyLinkPartial support 1 2IncompatiblePartial support 1 3Partial support 1Partial support 1 3
Go!LinkPartial support 1 2 4IncompatiblePartial support 1Partial support 1 4Partial support 1
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull supportFull support
CBL 2Full support 5Full support 5 6IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. Use with TI-84 Plus calculators only.
  3. Requires an Easy to Go! adapter
  4. Requires a Go! to Easy adapter
  5. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  6. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier 3-Axis Accelerometer

Accessories

There are no accessories available for this product.

Support

Resources

Warranty

5-year limited warranty
