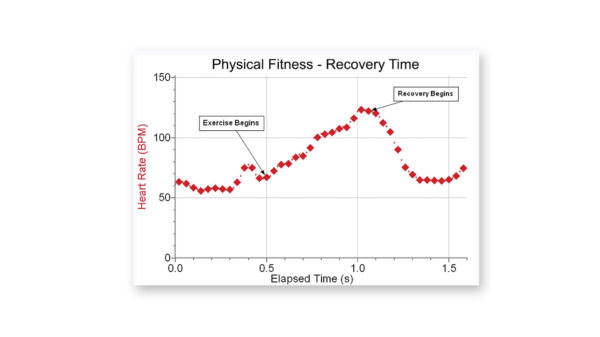

Recovery rate determined by monitoring heart rate

Recovery rate determined by monitoring heart rate

Heart rate recovery after moderate exercise (LabQuest App)

Heart rate recovery after moderate exercise (LabQuest App)

Education Level:

Subjects:

Categories:

Exercise Heart Rate Monitor

$99.00

The Exercise Heart Rate Monitor is an excellent hands-free option for continuously monitoring heart rate before, during, and after exercise or while a person is stationary.

ORDER CODE: EHR-BTA Categories ,

The design of the Exercise Heart Rate Monitor is an excellent hands-free option for continuously monitoring heart rate before, during, and after exercise. Using the chest strap, data are wirelessly transmitted to a Vernier interface using the Heart Rate Receiver. Data can also be transmitted using Bluetooth® to LabQuest 2 (may require additional hardware), iOS, or Android™ devices without the receiver.

  • Simple and easy to use
  • Chest strap is ideal for running, cycling, and other physical activities.

For an option to monitor heart rate with hands, please consider the Hand-Grip Heart Rate Monitor.

Specifications

  • Battery Type: CR 2025 (user-replaceable)
  • Battery Lifetime: 200 hrs
  • Operating Temperature: -10 to 50°C
  • Radios: Bluetooth and 5 kHz RF transmission
  • Wireless range:
    • RF Transmission: 80 to 100 cm
    • Bluetooth: 10 m or more unobstructed

Experiments

High School (2 experiments)
ExperimentLab Book
Heart Rate and Physical FitnessBiology with Vernier
Ventilation and Heart RateBiology with Vernier
College (2 experiments)
ExperimentLab Book
Heart Rate and Physical FitnessBiology with Vernier
Ventilation and Heart RateBiology with Vernier

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Exercise Heart Rate Monitor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Compatibility Notes

  1. Connect this sensor via Bluetooth® for best results.
Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10		Logger Pro
Version 3.16		Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatibleFull support 3Full support 3
Go!LinkFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1
Go!LinkFull support
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10		Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1 2
LabQuest StreamFull support 2Incompatible

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 via Wireless Data Sharing.
  2. Connect this sensor via Bluetooth® for best results.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10		Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1 2
LabQuest StreamFull support 2Incompatible

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 via Wireless Data Sharing.
  2. Connect this sensor via Bluetooth® for best results.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires advanced programming for data collection
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support 1
SensorDAQFull support 1
Vernier myDAQ AdapterFull support 1 2
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. Requires advanced programming for data collection
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1
Go!LinkFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2		DataMate
Version 1.15		TI-84 SmartViewDataQuest
Version 4.2		TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
Go!LinkFull support 1 3IncompatibleFull supportFull support 3Full support
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull supportFull support
CBL 2Full support 4Full support 4 5IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. Requires a Go! to Easy adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Heart Rate Hand GripsHR-GRIP$31.00

Support

Resources

Warranty

5-year limited warranty (consumables excluded)

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
