Force Plate

Force Plate

A sample graph of a person stepping onto the Force Plate, jumping, then standing still

A sample graph of a person stepping onto the Force Plate, jumping, then standing still

Force Plate

$319.00

Collect data on forces developed during stepping, jumping, and other human-scale actions.

ORDER CODE: FP-BTA Categories ,

Designed for much higher forces than the Dual-Range Force Sensor, the Force Plate can measure the forces developed during stepping, jumping, and other human-scale actions. For example, you can perform the following kinds of experiments:

  • Observe the change in normal force during an elevator ride.
  • Measure the impulse delivered by the floor during a jump.
  • Measure the reaction force as a student leans against a wall.
Force Plate - Tech Tips with Vernier
Force Plate - Tech Tips (6:20)

Specifications

  • Force range: –350 to +3500 N or –85 to +850 N, where positive value is a compression force
  • Maximum non-damaging force: 4500 N (1000 lb) compression
  • Typical Resolution: 1 N or 0.3 N
  • Dimensions: 31.5 cm by 31.5 cm by 3.5 cm

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical AnalysisLogger ProLogger Lite
LabQuest MiniFull supportFull supportFull support
LabQuest 3Full supportFull supportIncompatible
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest Stream (discontinued)Full support 1Full supportFull support 1
Go!LinkPartial support 2Partial support 2Partial support 2
LabQuest (discontinued)Full supportFull supportFull support
LabPro (discontinued)IncompatibleFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
  2. The currently shipping Force Plate cannot be used with this interface; the sensor requires more power than the interface can provide. The original Force Plate is fully supported. Which Force Plate do I have?
Chromebook
Software
InterfaceGraphical Analysis
LabQuest MiniFull support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest Stream (discontinued)Full support 1
Go!LinkPartial support 2
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
  2. The currently shipping Force Plate cannot be used with this interface; the sensor requires more power than the interface can provide. The original Force Plate is fully supported. Which Force Plate do I have?
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GWGoogle Science Journal
LabQuest Stream (discontinued)Full supportFull supportIncompatible
LabQuest 3Full support 1Full support 1Incompatible
LabQuest 2 (discontinued)Full support 1Full support 1Incompatible

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQ (discontinued)Full support
Vernier myDAQ AdapterFull support 1
Go!LinkPartial support 2
LabQuest MiniFull support
LabQuest Stream (discontinued)Full support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
  2. The currently shipping Force Plate cannot be used with this interface; the sensor requires more power than the interface can provide. The original Force Plate is fully supported. Which Force Plate do I have?
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
EasyLinkPartial support 1 2IncompatiblePartial support 2 3Partial support 2Partial support 2 3
CBL 2 (discontinued)Full support 4Full support 4 5IncompatibleIncompatibleIncompatible
LabPro (discontinued)Full support 4Full support 4 5IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. The currently shipping Force Plate cannot be used with this interface; the sensor requires more power than the interface can provide. The original Force Plate is fully supported. Which Force Plate do I have?
  3. Requires an Easy to Go! adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

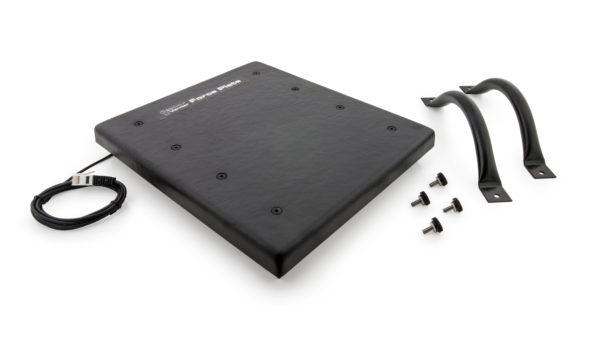

What's Included

  • Vernier Force Plate
  • BTA to BTA cable
  • (1) Pair of handles

Accessories

AccessoryOrder CodePriceQuantity
Force Plate HandlesFP-HAN$25.00

Support

Resources

Warranty

5-year limited warranty
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
