Go Wireless® Exercise Heart Rate

Go Wireless® Exercise Heart Rate

Go Wireless® Exercise Heart Rate

$79.00

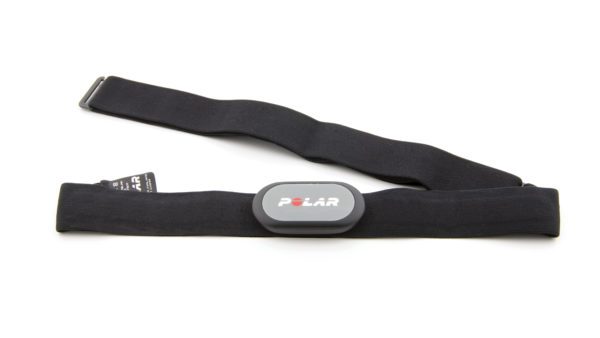

The Vernier Go Wireless® Exercise Heart Rate is an excellent hands-free option for continuously monitoring heart rate before, during, and after exercise or while a person is stationary. It connects via Bluetooth® wireless technology to your device.

ORDER CODE: GW-EHR Categories ,
Education Levels

The Vernier Go Wireless Exercise Heart Rate is an excellent hands-free option for continuously monitoring heart rate before, during, and after exercise or while a person is stationary. It connects via Bluetooth® wireless technology to your device.

  • Simple and easy to use
  • Displays live heart rate readouts before data collection
  • Chest strap is ideal for running, cycling, and other physical activities
Data can be transmitted to devices or interfaces that support Bluetooth wireless technology. For interfaces that do not support Bluetooth® wireless technology, this sensor will require the Heart Rate Receiver included with the Exercise Heart Rate Monitor.
For an option to monitor heart rate with hands, please consider the Go Wireless Heart Rate.

Specifications

  • Battery Type: CR 2025
  • Battery Lifetime: 200 hrs
  • Operating Temperature: -10 to 50 °C
  • Wireless range: 10 m or more unobstructed
  • Radios: Bluetooth and 5 kHz RF transmission

Experiments

High School (2 experiments)
ExperimentLab Book
Heart Rate and Physical FitnessBiology with Vernier
Ventilation and Heart RateBiology with Vernier
College (2 experiments)
ExperimentLab Book
Heart Rate and Physical FitnessBiology with Vernier
Ventilation and Heart RateBiology with Vernier

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Full support 2

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  2. Requires a Heart Rate Receiver to connect to an interface
Computers
Software
InterfaceGraphical Analysis App for ComputersLogger ProLogger Lite
No interface requiredFull support 1IncompatibleIncompatible
LabQuest MiniFull support 2 3Full support 2Full support 2
LabQuest 3Full support 2 3Full support 2Incompatible 2
LabQuest 2 (discontinued)Full support 2 3Full support 2Full support 2
LabQuest Stream (discontinued)Full support 2 3 4Full support 2Full support 2 4
Go!LinkFull support 2 3Full support 2Full support 2
LabQuest (discontinued)Full support 2 3Full support 2Full support 2
LabPro (discontinued)IncompatibleFull support 2Full support 2

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Requires a Heart Rate Receiver to connect to an interface
  3. Connect this sensor via Bluetooth® for best results.
  4. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
No interface requiredFull support
LabQuest MiniFull support 1 2
LabQuest 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2
LabQuest Stream (discontinued)Full support 1 2 3
Go!LinkFull support 1 2
LabQuest (discontinued)Full support 1 2

Compatibility Notes

  1. Requires a Heart Rate Receiver to connect to an interface
  2. Connect this sensor via Bluetooth® for best results.
  3. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical Analysis App for iOSGraphical Analysis GW for iOS
No interface requiredFull supportFull support
LabQuest Stream (discontinued)Full support 1 2Incompatible
LabQuest 3Full support 2 3Full support 2 3
LabQuest 2 (discontinued)Full support 2 3Full support 2 3

Compatibility Notes

  1. Requires a Heart Rate Receiver to connect to an interface
  2. Connect this sensor via Bluetooth® for best results.
  3. iOS and Android™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis App for AndroidGraphical Analysis GW for AndroidGoogle Science Journal
No interface requiredFull supportFull supportFull support 1
LabQuest Stream (discontinued)Full support 2 3IncompatibleIncompatible
LabQuest 3Full support 3 4Full support 3 4 5Incompatible
LabQuest 2 (discontinued)Full support 3 4Full support 3 4 5Incompatible

Compatibility Notes

  1. In addition to having the Science Journal app installed and the Location permission enabled, you must also install Graphical Analysis 4 on your Android device to use this sensor.
  2. Requires a Heart Rate Receiver to connect to an interface
  3. Connect this sensor via Bluetooth® for best results.
  4. iOS and Android™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  5. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1 2

Compatibility Notes

  1. Requires advanced programming for data collection
  2. Requires a Heart Rate Receiver to connect to an interface
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQ (discontinued)Full support 1
Vernier myDAQ AdapterFull support 1 2 3
Go!LinkFull support 1 3
LabQuest MiniFull support 1
LabQuest Stream (discontinued)Full support 1
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Full support 1

Compatibility Notes

  1. Requires a Heart Rate Receiver to connect to an interface
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
  3. Requires advanced programming for data collection
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
EasyLinkFull support 1 2IncompatibleFull support 1 3Full support 1Full support 1 3
CBL 2 (discontinued)Full support 1 4Full support 1 4 5IncompatibleIncompatibleIncompatible
LabPro (discontinued)Full support 1 4Full support 1 4 5IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull support 1Full support 1

Compatibility Notes

  1. Requires a Heart Rate Receiver to connect to an interface
  2. Use with TI-84 Plus calculators only.
  3. Requires an Easy to Go! adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

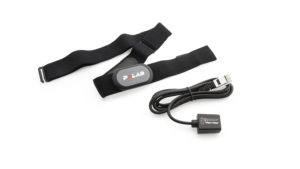

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Heart Rate ReceiverHR-REC$45.00
Heart Rate Hand GripsHR-GRIP$41.00
Replacement PartOrder CodePriceQuantity
Exercise Heart Rate StrapHR-STRAP$21.00
Polar Transmitter ModuleHR-TRANS$58.00

Support

Resources

User Manual

Warranty

5-year limited warranty (consumables excluded)
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
