Go Wireless® Heart Rate

Go Wireless® Heart Rate

Go Wireless® Heart Rate

$89.00

The Vernier Go Wireless® Heart Rate is ideal for continuously monitoring heart rate before, during, and after exercise or while a person is stationary. Data are wirelessly transmitted to iPad®, LabQuest 2, or Android™ devices.

ORDER CODE: GW-HR Categories ,

The Vernier Go Wireless Heart Rate is ideal for continuously monitoring heart rate before, during, and after exercise or while a person is stationary. Data are wirelessly transmitted to iPad, LabQuest 2 (may require additional hardware), or Android devices.

  • Simple and easy to use
  • Displays live heart rate readouts before data collection
  • Hand grips do not require electrodes or clips
  • Easy to clean and share between students

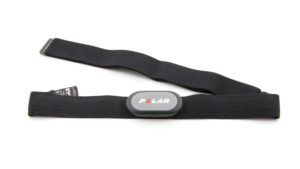

For a hands-free option, please consider the Go Wireless Exercise Heart Rate.

Specifications

  • Battery Type: CR 2025
  • Battery Lifetime: 200 hrs
  • Operating Temperature: -10 to 50 °C
  • Wireless range: 10 m or more unobstructed
  • Radios: Bluetooth and 5 kHz RF transmission

Experiments

Middle School (4 experiments)
High School (7 experiments)
College (7 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Go Wireless® Heart Rate is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1 2 3Full support 2Full support 2 4
EasyLinkIncompatibleFull support 2 5Full support 2
Go!LinkFull support 2 3Full support 2Full support 2
LabQuest 2Full support 2 3Full support 2Full support 2
LabQuest MiniFull support 2 3Full support 2Full support 2
No interface requiredFull support 6IncompatibleIncompatible

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Requires a Heart Rate Receiver to connect to an interface
  3. Connect this sensor via Bluetooth® for best results.
  4. Connect LabQuest Stream via USB. Wireless connection is not supported.
  5. Requires an Easy to Go! adapter
  6. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
No interface requiredFull support
EasyLinkFull support 1 2 3
Go!LinkFull support 2 3
LabQuest 2Full support 2 3
LabQuest MiniFull support 2 3
LabQuest StreamFull support 2 3 4

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Requires a Heart Rate Receiver to connect to an interface
  3. Connect this sensor via Bluetooth® for best results.
  4. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1 2Full support 1 2
No interface requiredFull supportFull support
LabQuest StreamFull support 1 3Incompatible

Compatibility Notes

  1. Connect this sensor via Bluetooth® for best results.
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  3. Requires a Heart Rate Receiver to connect to an interface
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest 2Full support 1 2Full support 1 2 3Incompatible
No interface requiredFull supportFull supportFull support 4
LabQuest StreamFull support 1 5IncompatibleIncompatible

Compatibility Notes

  1. Connect this sensor via Bluetooth® for best results.
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  3. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  4. In addition to having the Science Journal app installed and the Location permission enabled, you must also install Graphical Analysis 4 on your Android device to use this sensor.
  5. Requires a Heart Rate Receiver to connect to an interface
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1 2

Compatibility Notes

  1. Requires advanced programming for data collection
  2. Requires a Heart Rate Receiver to connect to an interface
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support 1 2
SensorDAQFull support 1
Vernier myDAQ AdapterFull support 1 2 3
LabQuest MiniFull support 1
LabQuest StreamFull support 1
LabQuest 2Full support 1

Compatibility Notes

  1. Requires a Heart Rate Receiver to connect to an interface
  2. Requires advanced programming for data collection
  3. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1 2
Go!LinkFull support 1
No interface requiredFull support 1

Compatibility Notes

  1. Requires a Heart Rate Receiver to connect to an interface
  2. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1 2IncompatibleFull support 1 3Full support 1Full support 1 3
Go!LinkFull support 1 2 4IncompatibleFull support 1Full support 1 4Full support 1
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull support 1Full support 1
CBL 2Full support 1 5Full support 1 5 6IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Requires a Heart Rate Receiver to connect to an interface
  2. Use with TI-84 Plus calculators only.
  3. Requires an Easy to Go! adapter
  4. Requires a Go! to Easy adapter
  5. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  6. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Heart Rate ReceiverHR-REC$45.00
Exercise Heart Rate StrapHR-STRAP$21.00

Support

Warranty

5-year limited warranty (consumables excluded)

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
