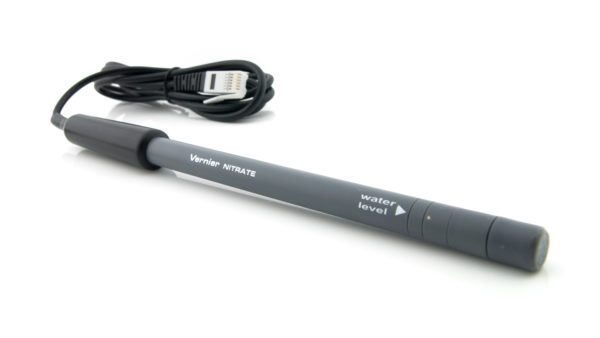

Nitrate Ion-Selective Electrode

Nitrate Ion-Selective Electrode

Nitrate Ion-Selective Electrode

$219.00

The Nitrate Ion-Selective Electrode (ISE) can be used to measure the concentration of Nitrate (NO3) in aqueous samples.

ORDER CODE: NO3-BTA Categories ,

Nitrate concentration, which can be increased by acidic rainfall, fertilizer runoff from fields, and plant or animal decay or waste, is an important parameter in nearly all water quality studies. Use the Nitrate ISE to determine the concentration of the nitrate ion in a water sample.

The Nitrate ISE has a combination-style, non-refillable, gel-filled electrode. Like all other PVC ISE membranes, the membrane on the ISE has a limited life expectancy. However, the replaceable module of ISE allows you to simply discard the used membrane module, and replace it with a new one.

Note: We recommend that you do not purchase ISE replacement modules too far in advance of their expected time of use as degradation occurs while they are stored on the shelf.

Important: Ion-Selective Electrodes require good chemical technique and careful calibration to obtain accurate results; they are not recommended for middle school or elementary students.

Specifications

  • Range (concentration): 1 to 14,000 mg/L (or ppm)
  • Reproducibility (precision): ±10% of full scale (calibrated 1 to 100 mg/L)
  • Interfering ions: CIO4, I, ClO3, CN, BF4
  • pH range: 2–11 (no pH compensation)
  • Temperature range: 0–40°C (no temperature compensation)
  • Electrode slope: +56 ±4 mV/decade at 25°C
  • Electrode resistance: 1–4 MΩ
  • Immersion: 2.8 cm
  • Electrode length: 155 mm
  • Body diameter: 12 mm
  • Cap diameter: 16 mm
  • Cable length: 100 cm

Experiments

Middle School (1 experiments)
High School (1 experiments)
College (1 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Nitrate Ion-Selective Electrode is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.15
Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2
Go!LinkFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest MiniFull support
LabQuest 2Full support
LabQuest StreamFull support 1
Go!LinkFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportFull support
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest StreamFull supportIncompatible
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.

What's Included

  • Vernier Nitrate Ion-Selective Electrode

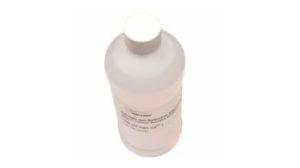

  • 30 mL bottle of Nitrate Low Standard (1 mg/L)
  • 30 mL bottle of Nitrate High Standard (100 mg/L)
  • Short-term ISE soaking bottle
  • User manual

Accessories

Optional AccessoryOrder CodePriceQuantity
Electrode SupportESUP$10.00

Support

User Manual

View User Manual

Warranty

5-year limited warranty (1 year on module, none on consumables)

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
