UVA Sensor

UVA Sensor

UVA Sensor

$109.00

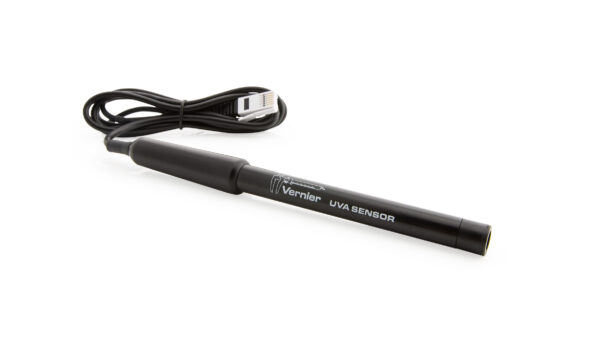

The UVA Sensor is an ultraviolet light sensor that responds primarily to UVA radiation (approximately 320 to 390 nm). This sensor is ideal for experiments using UV lamps.

ORDER CODE: UVA-BTA Categories ,

Specifications

  • UV peak sensitivity: one volt per 3940 mW/m2 at 340 nm
  • Wavelength sensitivity region, approximate: 320 to 390 nm (320 to 375 nm, half-sensitivity points)
  • Dimensions: 21 cm by 2 cm diameter
  • Typical Resolution: 5 mW/m2
  • Time response: approximately 2 seconds to reach 95% of final reading

Download the user manual for full specifications

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest® 3Full supportFull supportFull support
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2
Go!LinkFull supportFull supportFull support
LabQuest (discontinued)Full supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 4.10
LabQuest MiniFull support
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest StreamFull support 1
Go!LinkFull support
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportFull support
LabQuest® 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis App for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest StreamFull supportFull supportIncompatible
LabQuest® 3Full support 1Full support 1Incompatible
LabQuest 2 (discontinued)Full support 1Full support 1Incompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® EV3
Version 1.1
LEGO® MINDSTORMS® NXT
Version 2.0
NXT Sensor AdapterFull supportFull support
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
Go!LinkFull support
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
CBL 2Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  4. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Accessories

There are no accessories available for this product.

Support

Warranty

5-year limited warranty
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
