PAR Sensor

PAR Sensor

PAR Sensor

$229.00

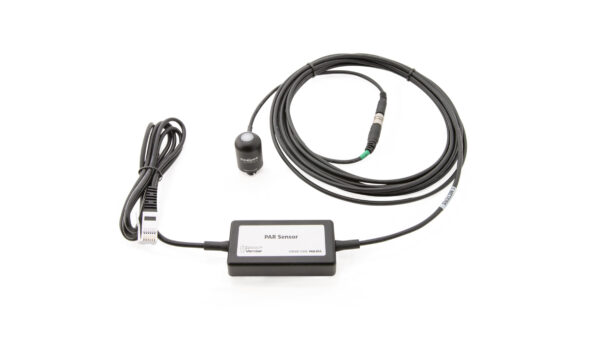

The PAR (Photosynthetically Active Radiation) Sensor measures photosynthetic light levels in both air and water.

ORDER CODE: PAR-BTA Categories ,

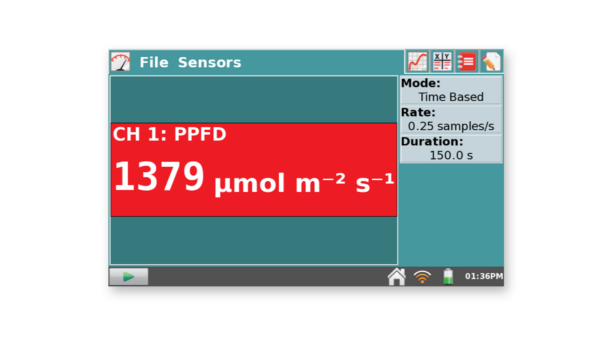

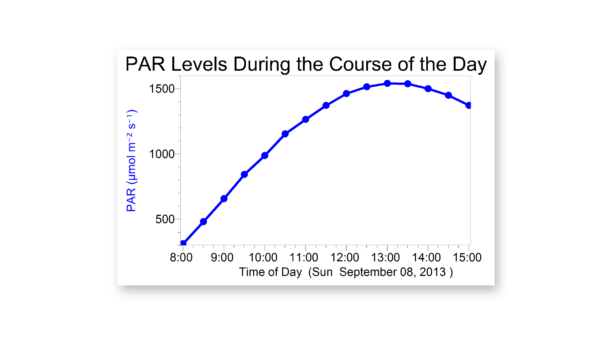

The PAR (Photosynthetically Active Radiation) Sensor reports the Photosynthetic Photon Flux Density (PPFD), which corresponds to micromoles of photons per meter squared per second (μmol m-2 s-1). This is the power of electromagnetic radiation in the spectral range that is used by plants for photosynthesis (400–700 nm). It features a waterproof sensor head and can be used to measure PPFD from sunlight and electric light sources. This sensor is ideal for experiments investigating photosynthesis and primary productivity and can be used in many agricultural and environmental science applications.

Specifications

  • PAR Range: 0 to 2000 μmol m-2 s-1 (PPFD) in full sun
  • Absolute Accuracy: ±5%
  • Repeatability: ±1%
  • Long-Term Drift: Less than 2% per year
  • Cosine Response:
    • 45° zenith angle: ±2%
    • 75° zenith angle: ±5%
  • Wavelength range: 410 nm to 655 nm
  • Typical Resolution: 1 μmol m-2 s-1 (PPFD)
  • Sensor dimensions:
    • Diameter: 2.4 cm
    • Height: 2.75 cm
    • Cable length: 6 m
  • Materials: Anodized aluminum with case acrylic lens

Experiments

Middle School (1 experiments)
High School (1 experiments)
College (1 experiments)

Free Experiments

Download free experiments for the PAR sensor. Student instructions and teacher information are included.

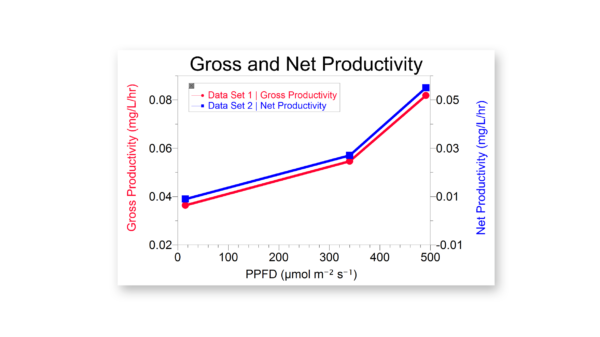

  1. PAR Attenuation in Water

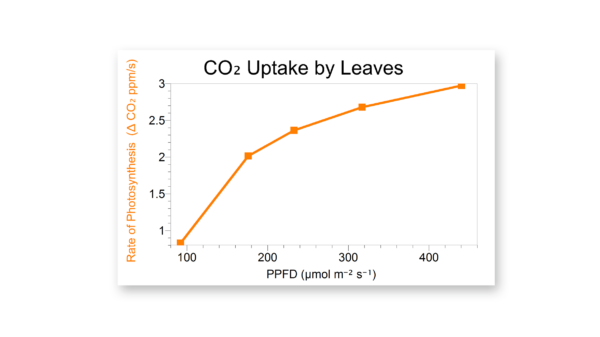

  2. Photosynthesis and Respiration
  3. Photosynthesis and Respiration (Inquiry)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest® 3Full supportFull supportFull support
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2
Go!LinkFull supportFull supportFull support
LabQuest (discontinued)Full supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 4.10
LabQuest MiniFull support
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest StreamFull support 1
Go!LinkFull support
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportPartial support 1
LabQuest® 3Full support 2Full support 2
LabQuest 2 (discontinued)Full support 2Full support 2

Compatibility Notes

  1. Data can be collected using the sensor’s default calibration only.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis App for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest StreamFull supportPartial support 1Incompatible
LabQuest® 3Full support 2Full support 2Incompatible
LabQuest 2 (discontinued)Full support 2Full support 2Incompatible

Compatibility Notes

  1. Data can be collected using the sensor’s default calibration only.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® EV3
Version 1.1
NXT Sensor AdapterPartial support 1

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
Go!LinkFull support
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
CBL 2Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  4. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Accessories

There are no accessories available for this product.

Support

Warranty

5-year limited warranty
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
