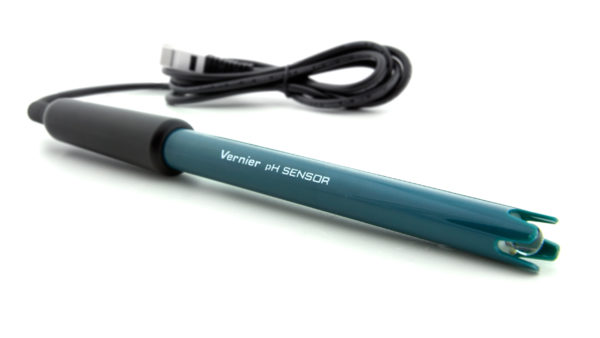

pH Sensor

pH Sensor

pH Sensor

$88.00

Our general-purpose pH Sensor can be used across disciplines, including chemistry, biology, middle school science, and environmental science.

ORDER CODE: PH-BTA Categories ,

Use the pH Sensor just as you would a traditional pH meter with the additional advantages of automated data collection, graphing, and data analysis. Typical activities using our pH sensor include:

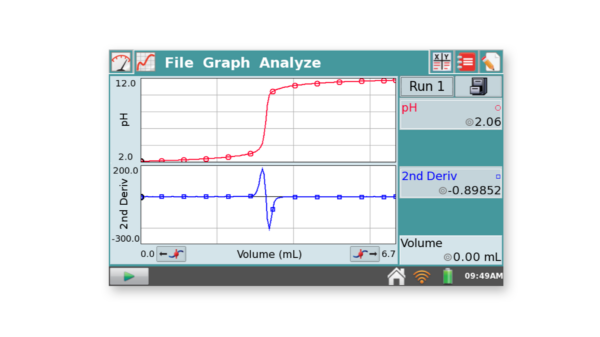

  • Acid-base titrations
  • Studies of household acids and bases
  • Monitoring pH change during chemical reactions or in an aquarium as a result of photosynthesis
  • Investigations of acid rain and buffering
  • Analysis of water quality in streams and lakes

If you are studying Tris buffers or semisolids such a soil slurry, consider the Vernier Tris-Compatible Flat pH Sensor.

Specifications

  • Type: Sealed, gel-filled, epoxy body, Ag/AgCl
  • Shaft Diameter: 12 mm OD
  • Response time: 90% of final reading in 1 second
  • Temperature range: 5 to 80°C
  • Range: pH 0–14
  • Accuracy: +/- 0.2 pH units
  • Isopotential pH: pH 7 (point at which temperature has no effect)

Experiments

Middle School (19 experiments)
High School (66 experiments)
ExperimentLab Book
Investigating Acid-Base TitrationsVernier Chemistry Investigations for Use with AP* Chemistry
The Buffering Ability of Commercial ProductsVernier Chemistry Investigations for Use with AP* Chemistry
Testing the Effectiveness of a BufferVernier Chemistry Investigations for Use with AP* Chemistry
Investigating Water HardnessVernier Chemistry Investigations for Use with AP* Chemistry
The Acidity of Juice and Soft DrinksVernier Chemistry Investigations for Use with AP* Chemistry
Identifying an Unknown SubstanceVernier Chemistry Investigations for Use with AP* Chemistry
Watershed TestingAgricultural Science with Vernier
Interdependence of Plants and AnimalsAgricultural Science with Vernier
Acids and BasesAgricultural Science with Vernier
Soil pHAgricultural Science with Vernier
Water MonitoringInvestigating Biology through Inquiry
Buffer InvestigationsInvestigating Biology through Inquiry
Interdependence of Plants and AnimalsBiology with Vernier
Acid RainBiology with Vernier
Watershed TestingBiology with Vernier
Physical Profile of a LakeBiology with Vernier
Acids and BasesBiology with Vernier
Investigating IndicatorsAdvanced Chemistry with Vernier
Separation and Qualitative Analysis of CationsAdvanced Chemistry with Vernier
Separation and Qualitative Analysis of AnionsAdvanced Chemistry with Vernier
BuffersAdvanced Chemistry with Vernier
Determining the Ksp of Calcium HydroxideAdvanced Chemistry with Vernier
Determining Ka by the Half-Titration of a Weak AcidAdvanced Chemistry with Vernier
Standardizing a Solution of Sodium HydroxideAdvanced Chemistry with Vernier
Acid-Base TitrationAdvanced Chemistry with Vernier
Long Term Water MonitoringInvestigating Chemistry through Inquiry
Acid-Base Properties of Household ProductsInvestigating Chemistry through Inquiry
The Effect of Acid Deposition on Aqueous SystemsInvestigating Chemistry through Inquiry
Acid-Base TitrationsInvestigating Chemistry through Inquiry
Baking Soda and Vinegar Investigations RevisitedInvestigating Chemistry through Inquiry
Household Acids and BasesChemistry with Vernier
Acid RainChemistry with Vernier
Titration Curves of Strong and Weak Acids and BasesChemistry with Vernier
Acid-Base TitrationChemistry with Vernier
Titration of a Diprotic Acid: Identifying an UnknownChemistry with Vernier
Acid Dissociation Constant, KaChemistry with Vernier
Time-Release Vitamin C TabletsChemistry with Vernier
The Buffer in LemonadeChemistry with Vernier
Determining the Phosphoric Acid Content in Soft DrinksChemistry with Vernier
Microscale Acid-Base TitrationChemistry with Vernier
Data Display and Acidity TesterVernier Engineering Projects with LEGO® MINDSTORMS® Education EV3
Aquarium MonitorVernier Engineering Projects with LEGO® MINDSTORMS® Education EV3
Soil pHInvestigating Environmental Science through Inquiry
Soil and Acid RainInvestigating Environmental Science through Inquiry
Water Cycle Column InvestigationsInvestigating Environmental Science through Inquiry
Decomposition Column InvestigationsInvestigating Environmental Science through Inquiry
Ecocolumn InvestigationsInvestigating Environmental Science through Inquiry
The Effect of Acid Deposition on Aquatic EcosystemsInvestigating Environmental Science through Inquiry
A Pollution StudyInvestigating Environmental Science through Inquiry
Water QualityInvestigating Environmental Science through Inquiry
Long Term Water MonitoringInvestigating Environmental Science through Inquiry
Water TreatmentInvestigating Environmental Science through Inquiry
pHEarth Science with Vernier
Water TreatmentEarth Science with Vernier
Acid Rain and Its Effect on Surface WaterEarth Science with Vernier
Soil pHEarth Science with Vernier
Soil and Acid RainEarth Science with Vernier
Drug TestsForensics with Vernier
No DumpingForensics with Vernier
Household Acids and BasesPhysical Science with Vernier
Acid RainPhysical Science with Vernier
Sour Chemistry - The Exponential pH ChangeReal-World Math with Vernier
Titration Curves: An Application of the Logistic FunctionReal-World Math with Vernier
AlkalinityWater Quality with Vernier
Physical Profile of a LakeWater Quality with Vernier
pHWater Quality with Vernier
College (37 experiments)
ExperimentLab Book
Watershed TestingAgricultural Science with Vernier
Interdependence of Plants and AnimalsAgricultural Science with Vernier
Acids and BasesAgricultural Science with Vernier
Soil pHAgricultural Science with Vernier
Water MonitoringInvestigating Biology through Inquiry
Buffer InvestigationsInvestigating Biology through Inquiry
Interdependence of Plants and AnimalsBiology with Vernier
Acid RainBiology with Vernier
Watershed TestingBiology with Vernier
Physical Profile of a LakeBiology with Vernier
Acids and BasesBiology with Vernier
Investigating IndicatorsAdvanced Chemistry with Vernier
Separation and Qualitative Analysis of AnionsAdvanced Chemistry with Vernier
BuffersAdvanced Chemistry with Vernier
Determining the Ksp of Calcium HydroxideAdvanced Chemistry with Vernier
Determining Ka by the Half-Titration of a Weak AcidAdvanced Chemistry with Vernier
Standardizing a Solution of Sodium HydroxideAdvanced Chemistry with Vernier
Acid-Base TitrationAdvanced Chemistry with Vernier
Long Term Water MonitoringInvestigating Chemistry through Inquiry
Acid-Base Properties of Household ProductsInvestigating Chemistry through Inquiry
The Effect of Acid Deposition on Aqueous SystemsInvestigating Chemistry through Inquiry
Acid-Base TitrationsInvestigating Chemistry through Inquiry
Baking Soda and Vinegar Investigations RevisitedInvestigating Chemistry through Inquiry
Time-Release Vitamin C TabletsChemistry with Vernier
Soil pHInvestigating Environmental Science through Inquiry
Soil and Acid RainInvestigating Environmental Science through Inquiry
Water Cycle Column InvestigationsInvestigating Environmental Science through Inquiry
Decomposition Column InvestigationsInvestigating Environmental Science through Inquiry
Ecocolumn InvestigationsInvestigating Environmental Science through Inquiry
The Effect of Acid Deposition on Aquatic EcosystemsInvestigating Environmental Science through Inquiry
A Pollution StudyInvestigating Environmental Science through Inquiry
Water QualityInvestigating Environmental Science through Inquiry
Long Term Water MonitoringInvestigating Environmental Science through Inquiry
Water TreatmentInvestigating Environmental Science through Inquiry
AlkalinityWater Quality with Vernier
Physical Profile of a LakeWater Quality with Vernier
pHWater Quality with Vernier

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The pH Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatibleFull support 3Full support 3
Go!LinkFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1
Go!LinkFull support
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest 2Full support 1Full support 1Incompatible
LabQuest StreamFull supportPartial support 2Incompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  2. Data can be collected using the sensor’s default calibration only.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® EV3
Version 1.1
LEGO® MINDSTORMS® NXT
Version 2.0
NXT Sensor AdapterFull supportFull support
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1
Go!LinkFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
Go!LinkFull support 1 3IncompatibleFull supportFull support 3Full support
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull supportFull support
CBL 2Full support 4Full support 4 5IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. Requires a Go! to Easy adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier pH Sensor
  • pH storage solution
  • pH storage solution bottle

Accessories

AccessoryOrder CodePriceQuantity
Electrode SupportESUP$10.00
Water Depth SamplerWDS$89.00
pH Storage SolutionPH-SS$20.00
pH Buffer Capsule KitPH-BUFCAP$29.00
MicrostirrerMSTIR$9.00

Support

Warranty

5-year limited warranty
