Go!Link

Go!Link

Find other products in this category:

Go!Link

$69.00$535.00

Vernier’s low-cost USB sensor interface connects Vernier sensors to a computer or to a Chromebook.

ORDER CODE: N/A Category
Clear

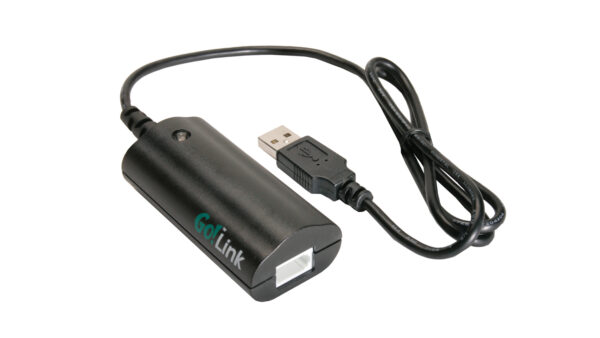

The Go!Link USB sensor interface is a quick and affordable way to get started with data-collection technology. It’s a single-channel interface that connects most Vernier sensors to your computer or Chromebook USB port.

Setting up data-collection experiments is as simple as 1-2-3:

  1. Plug the Go!Link to a USB port and a sensor into the Go!Link.
  2. Start the data-logging software.
  3. Click on the “Collect” button to see a real-time graph!

Teacher Packs

Save money by purchasing our Go!Link Teacher packs. Use the 8 Go!Links to connect 8 sensors to 8 computers or connect multiple sensors to one computer or Chromebook.

Specifications

  • USB specification: 1.1
  • Maximum sample rate: 200 samples per second
  • Resolution: 12 bit
Computers and Graphical Analysis 4 for Computers (61 sensors)

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. Requires a Heart Rate Receiver to connect to an interface
  6. Connect this sensor via Bluetooth® for best results.
  7. Software does not support the Data Tagging feature that is typically used with this sensor.
  8. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  9. Software does not support baseline adjustment.
  10. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  11. This interface/software combination can only collect force data; displacement measurements are not supported.
Computers and Logger Pro (64 sensors)

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. Requires a Heart Rate Receiver to connect to an interface
  6. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  7. Sensor does not auto-ID; manual setup is required.
  8. Requires a Gas Pressure Sensor
  9. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  10. This interface/software combination can only collect force data; displacement measurements are not supported.
Computers and Logger Lite (63 sensors)

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. Requires a Heart Rate Receiver to connect to an interface
  6. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  7. Requires a Gas Pressure Sensor
  8. Software does not support baseline adjustment.
  9. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  10. This interface/software combination can only collect force data; displacement measurements are not supported.
Chromebook and Graphical Analysis 4 for Chrome (61 sensors)

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. Requires a Heart Rate Receiver to connect to an interface
  6. Connect this sensor via Bluetooth® for best results.
  7. Software does not support the Data Tagging feature that is typically used with this sensor.
  8. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  9. Software does not support baseline adjustment.
  10. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  11. This interface/software combination can only collect force data; displacement measurements are not supported.

Compatible Devices and Software

Windows and Mac

Chromebook

Graphical Analysis 4

Other Platforms

What's Included

Go!Link

  • Vernier Go!Link interface
  • Quick-start guide

Go!Link Teacher Pack

  • 8 Vernier Go!Link interfaces
  • Quick-start guide

Support

User Manual

View User Manual

FAQs and troubleshooting guide

Warranty

5-year limited warranty

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
