Vernier Arduino® Interface Shield

Vernier Arduino® Interface Shield

Vernier Arduino® Interface Shield

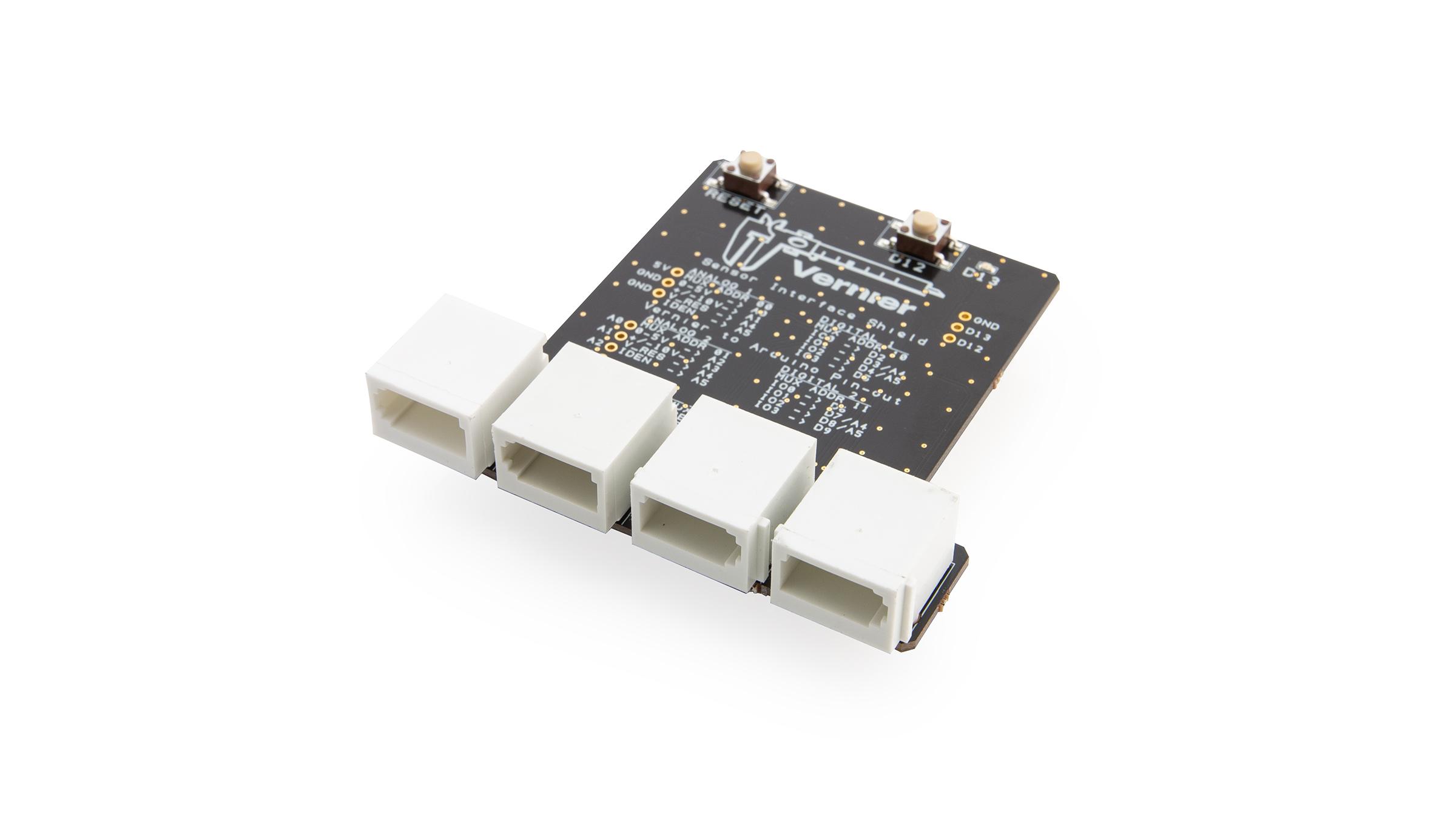

Vernier Arduino Interface Shield - Image 2

Vernier Arduino® Interface Shield

$29.00

The Vernier Arduino Interface Shield provides a convenient way to connect Vernier LabQuest® sensors to Arduino UNO microcontrollers, such as the Arduino UNO R4 WiFi.

The Interface Shield also includes the Vernier Coding Activities with Arduino: Analog Sensors e-book at no additional cost*, providing engaging coding activities to get started.

*E-book is available at no additional cost for new Interface Shield orders.

ORDER CODE: BT-ARD Category Tag

Due to recent changes in U.S. trade policy, new tariffs are being implemented that impact our products. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. Learn more.

Education Levels
Subjects
Categories

The Vernier Arduino Interface Shield provides a convenient way to connect up to two Vernier LabQuest analog sensors and two LabQuest digital sensors. The shield is designed to plug onto any Arduino UNO R3 or R4 board. After connecting the Interface Shield to the Arduino UNO plug your Vernier LabQuest sensors into the Interface Shield.

If you are interested in using Vernier Go Direct® sensors with Arduino UNO R4 Wifi you will not need this shield, you will only need the UNO R4 Wifi.

The Interface Shield also includes the Vernier Coding Activities with Arduino: Analog Sensors e-book at no additional cost*, providing engaging coding activities to get started.

*E-book is available at no additional cost for new Interface Shield orders.

Specifications

Vernier Arduino Interface Shield

  • 2 analog sensor ports (BTA sockets)
  • 2 digital sensor ports (BTD sockets)
  • Reset button
  • General-purpose button
  • Indicator LED
  • Includes a multiplexer to allow auto-ID to work on both channels (both analog and digital)

Supported Microcontrollers

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Arduino UNO R4 WiFiARD-R4WIFI$30.00

Compatible Sensors

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from two axes.
  2. Requires advanced programming for data collection
  3. Requires a Motion Detector Cable to connect to a DIG port on the interface
  4. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
  5. Requires a Heart Rate Receiver to connect to an interface
  6. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
